Grey 80 drawers load guard etc

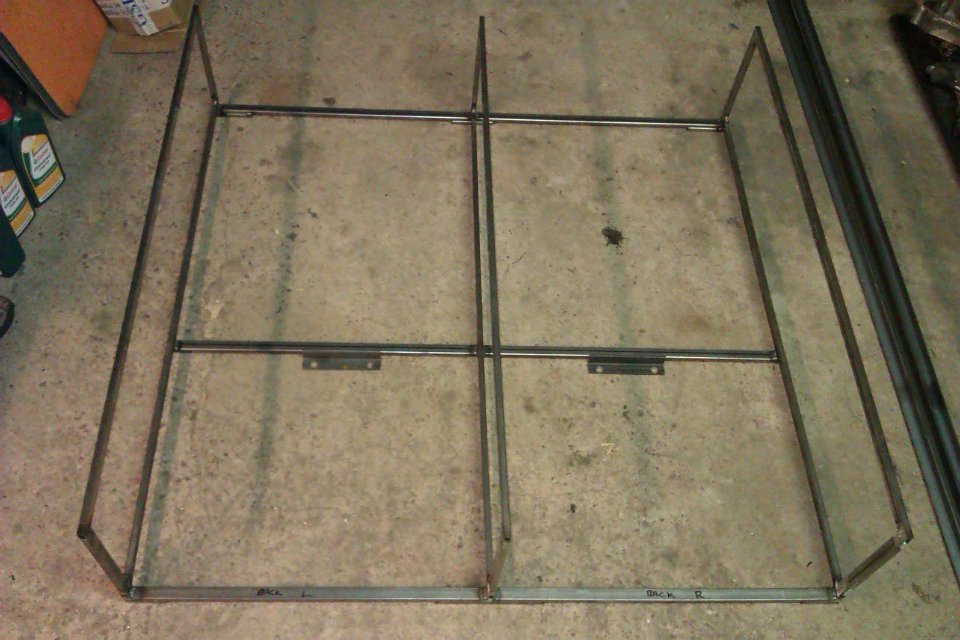

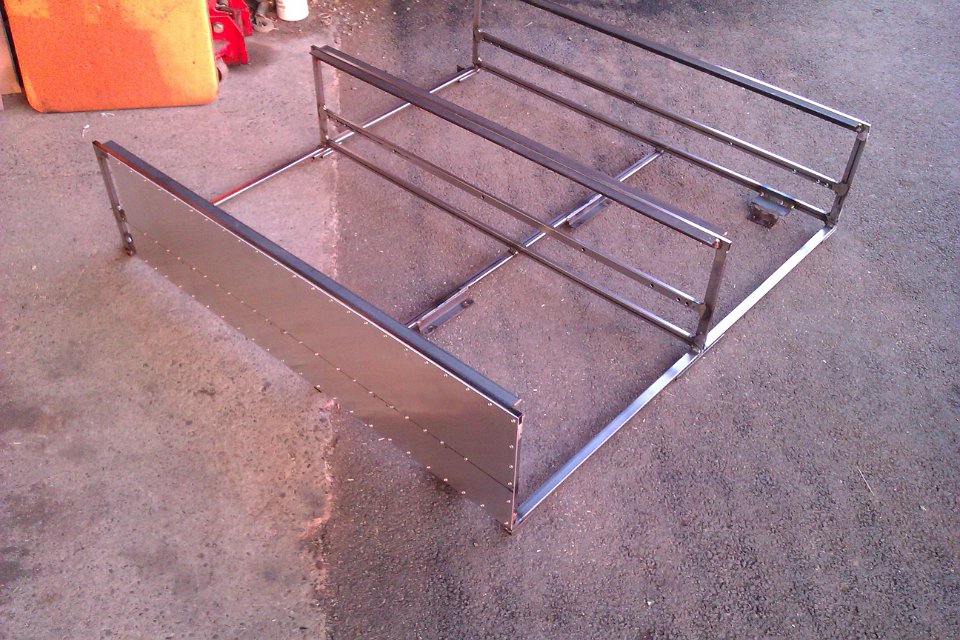

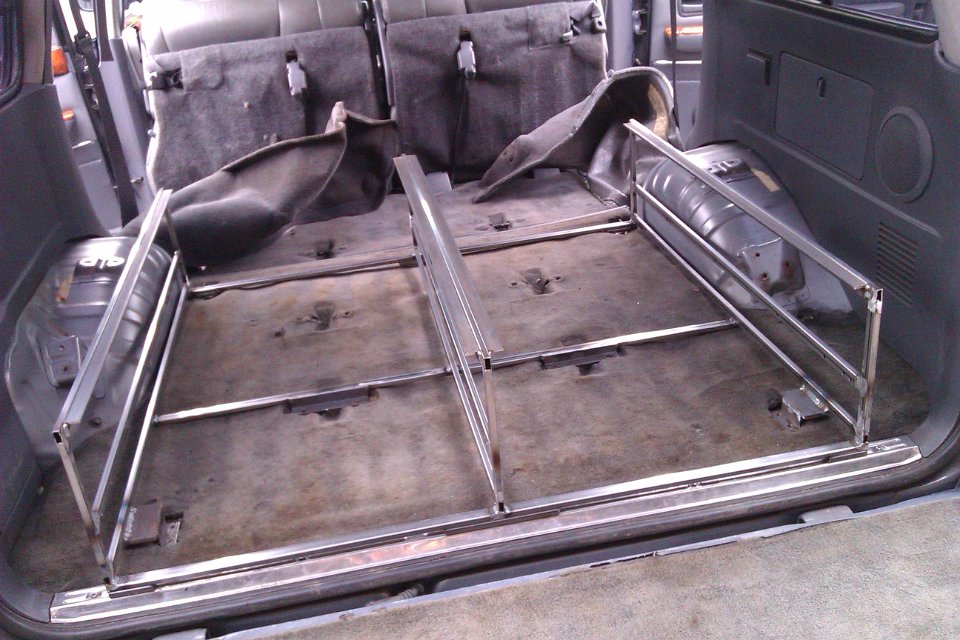

IMAG0890  20x10x1.5mm steel makes quite a light weight frame IMAG0892  test fitting IMAG0899 IMAG0915  1.5mm thick aluminium sheets riveted on to enclose the back and sides

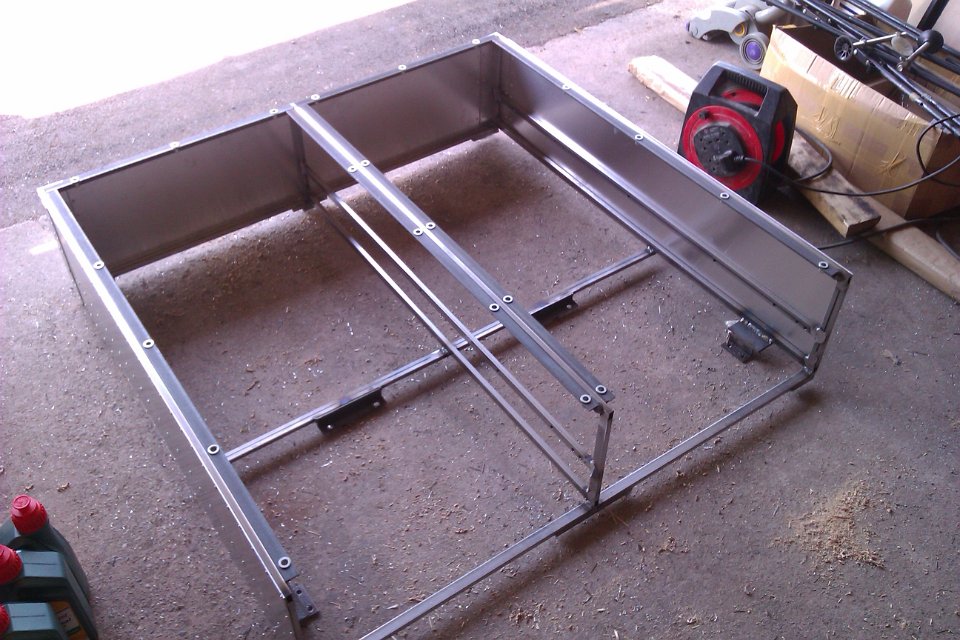

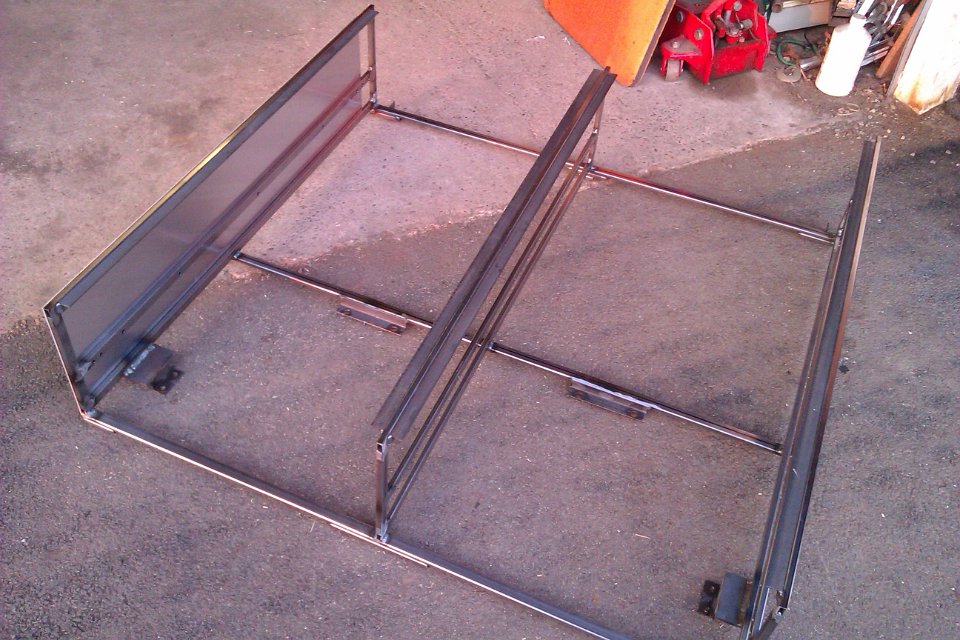

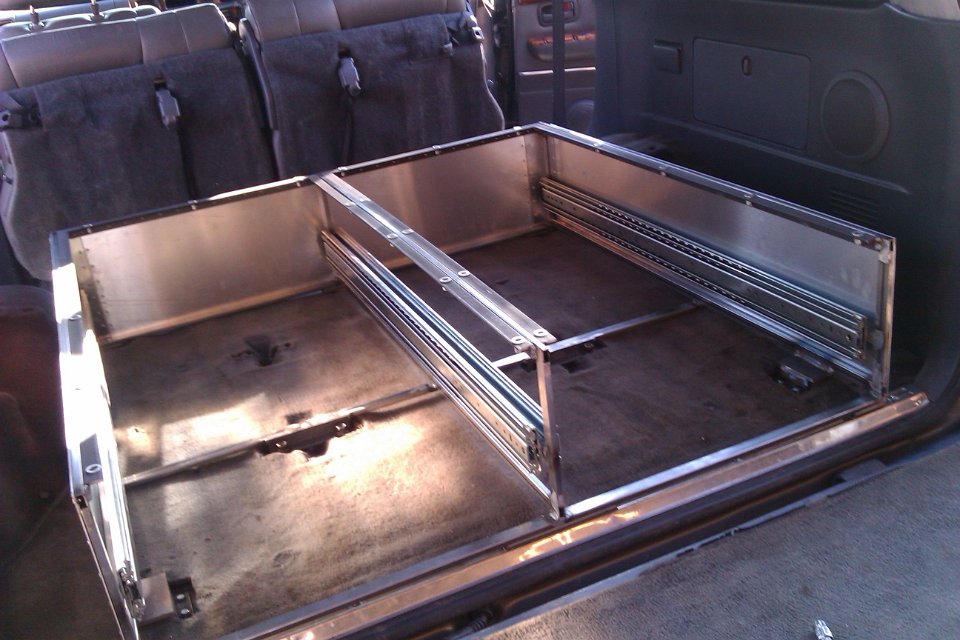

IMAG0917 IMAG0924 IMAG0925  Rivnuts set into angle edging. IMAG0928  Top will be 18mm good quality ply so self supporting and no steel work needed to span side to side

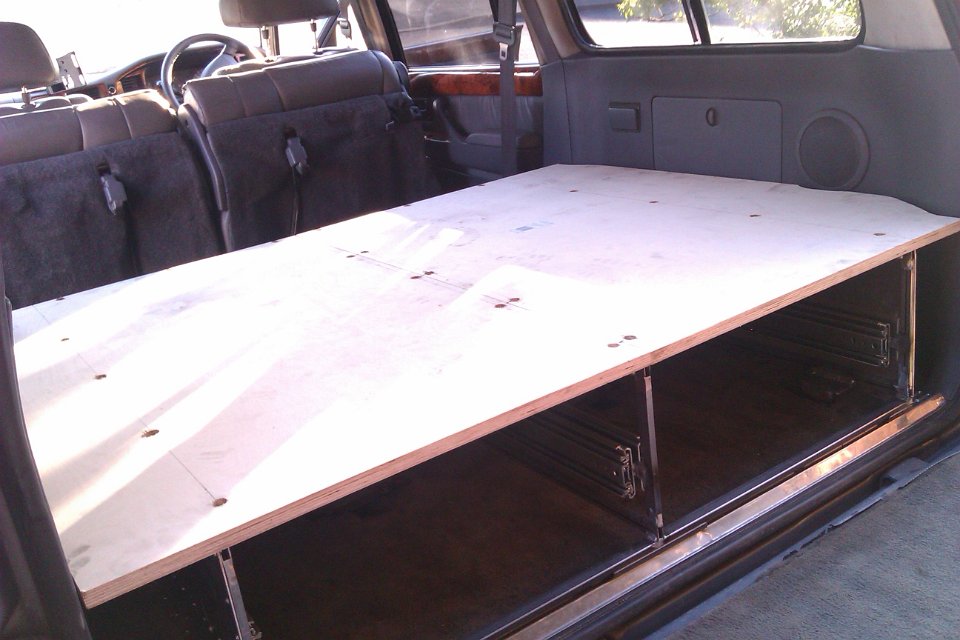

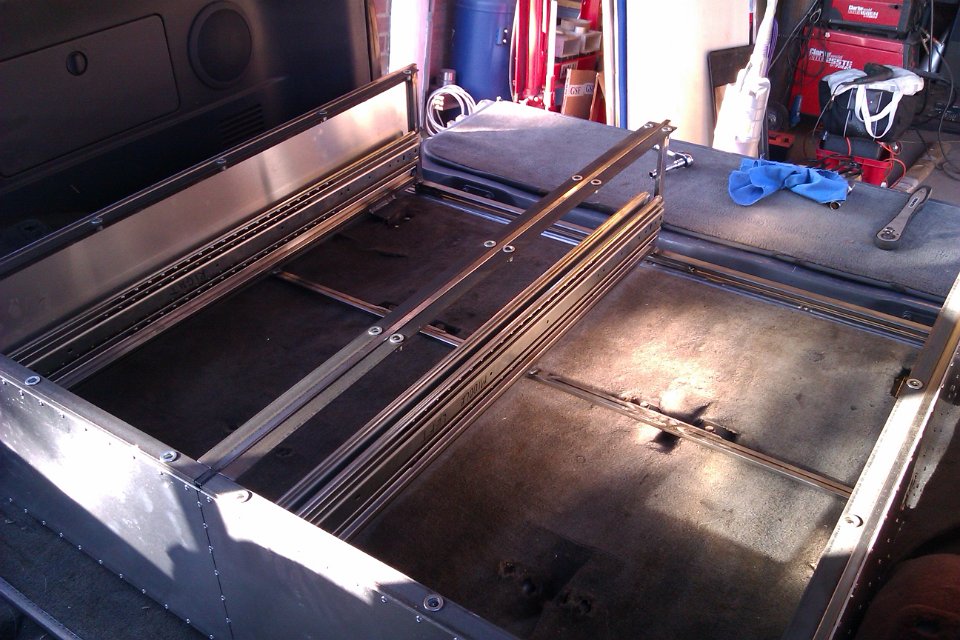

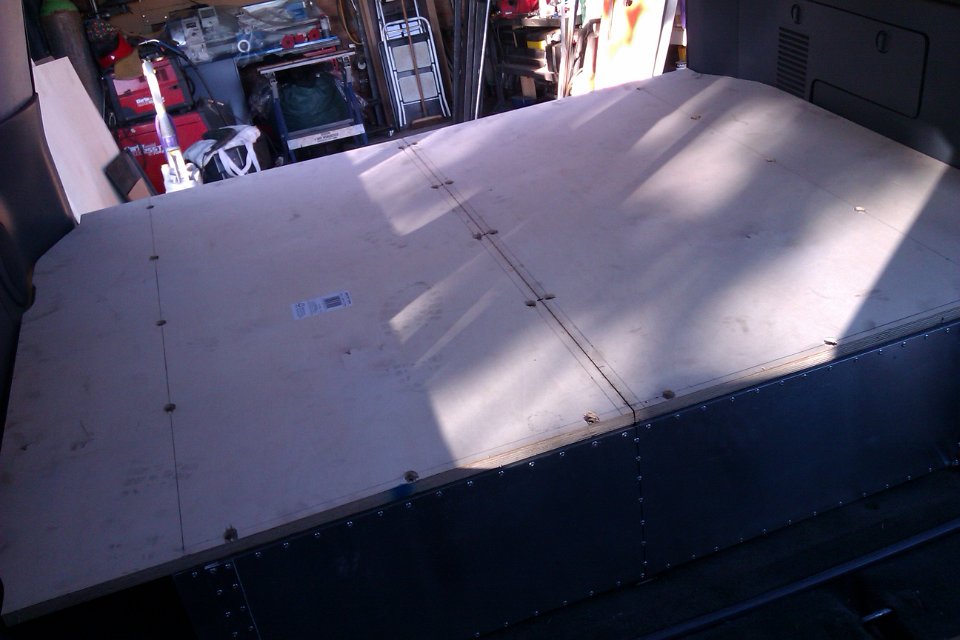

IMAG0930  Heavy duty runners are ... heavy! IMAG0932  Top is in 2 halves makes getting the top on/off much easier IMAG0934  Security headed bolts hold the tops on IMAG0937  A bit higher than seat backs which are angled, so tip them up a bit with something wedged under and you get an almost flat surface

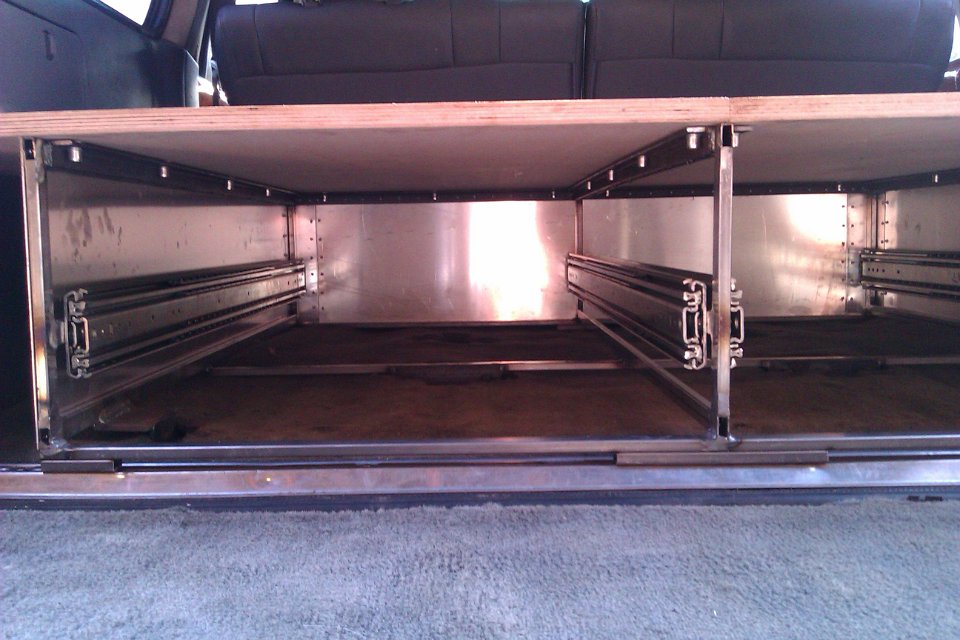

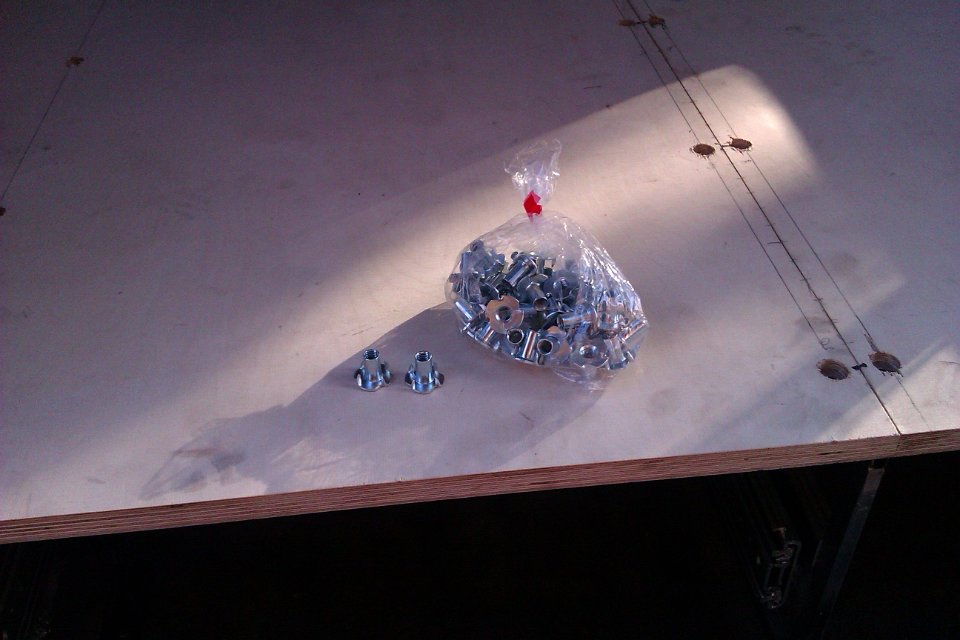

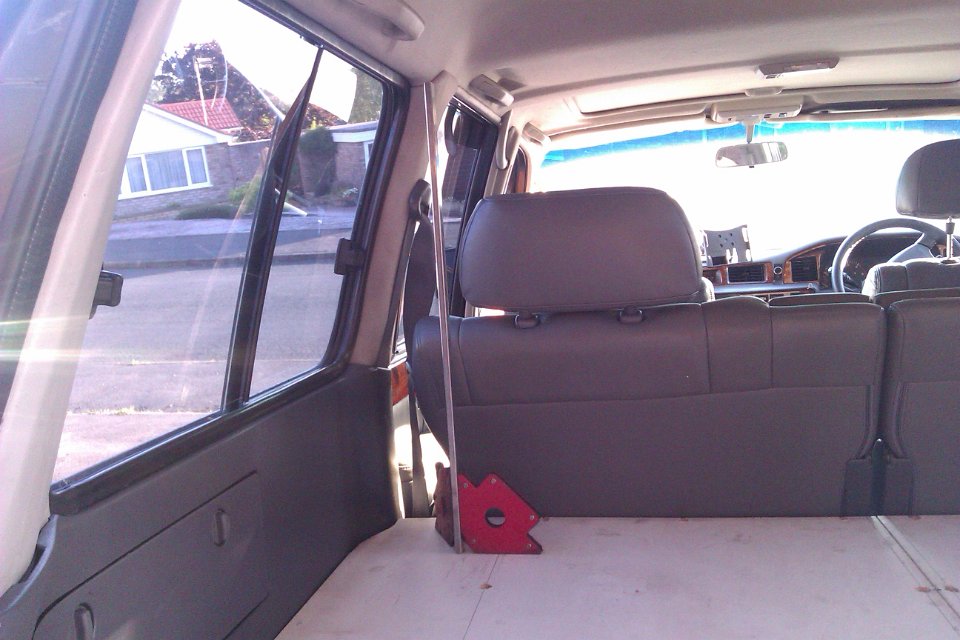

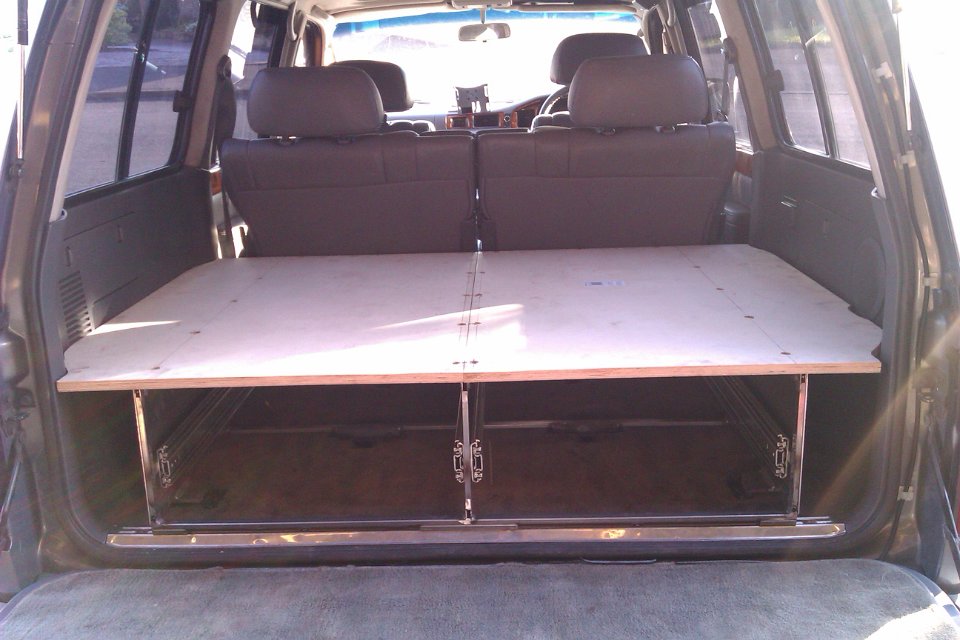

IMAG0940 IMAG0942  No side to side steel work at the top means can use full height for drawer space IMAG0944  These will be used to bolt things to the tops e.g. load barrier, tie downs IMAG0946  Load barrier also made from 20x10x1.5mm to be light weight. Will flex if hit hard with heavy weight but do its job

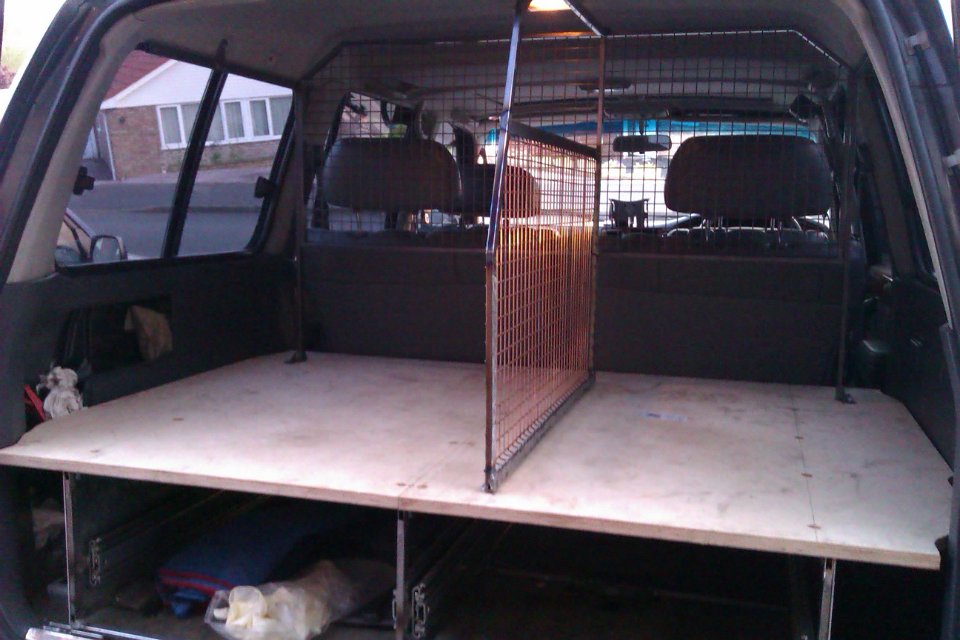

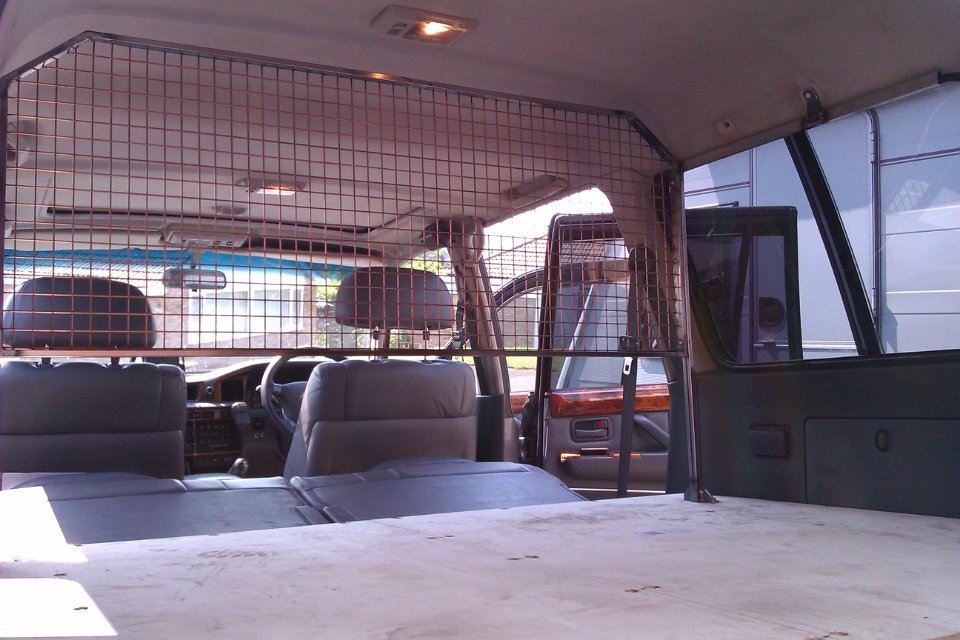

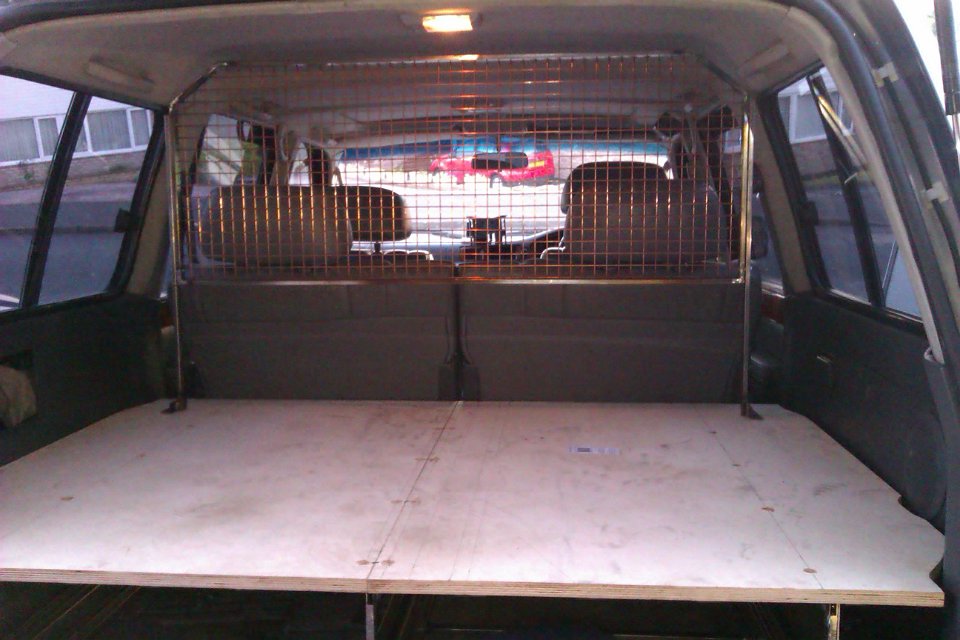

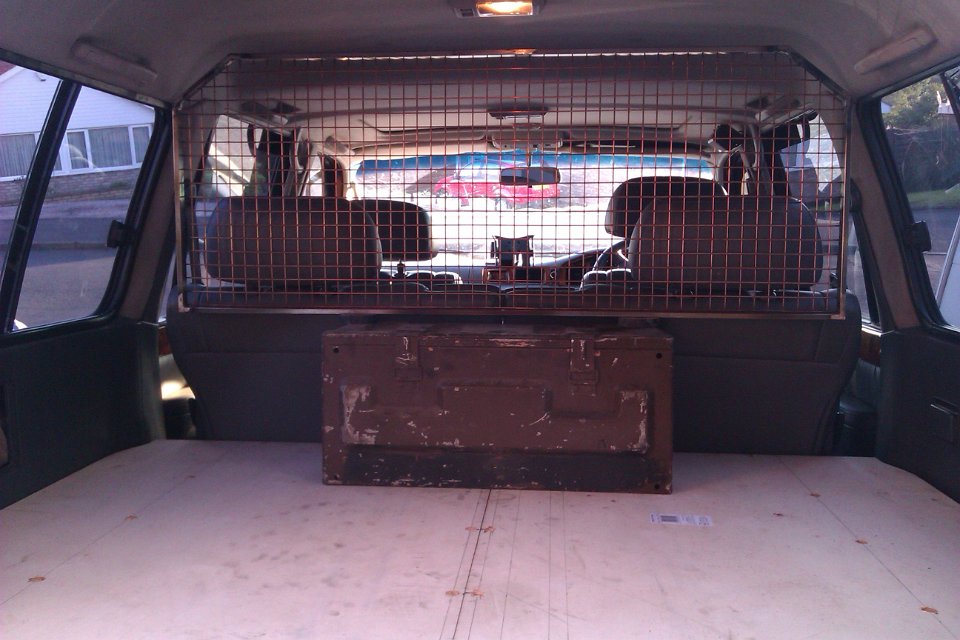

IMAG0956 IMAG0958  Feet bolt to drawer tops IMAG0962  Then braced back to grab handle bolt hole. Side frames stay in place if load guard is removed IMAG0963  Dog divider

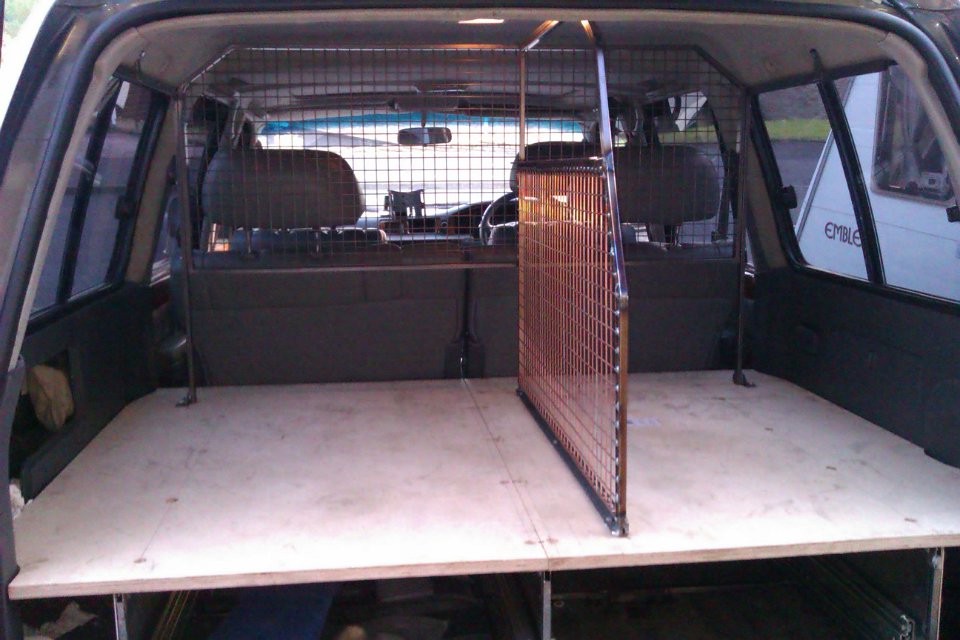

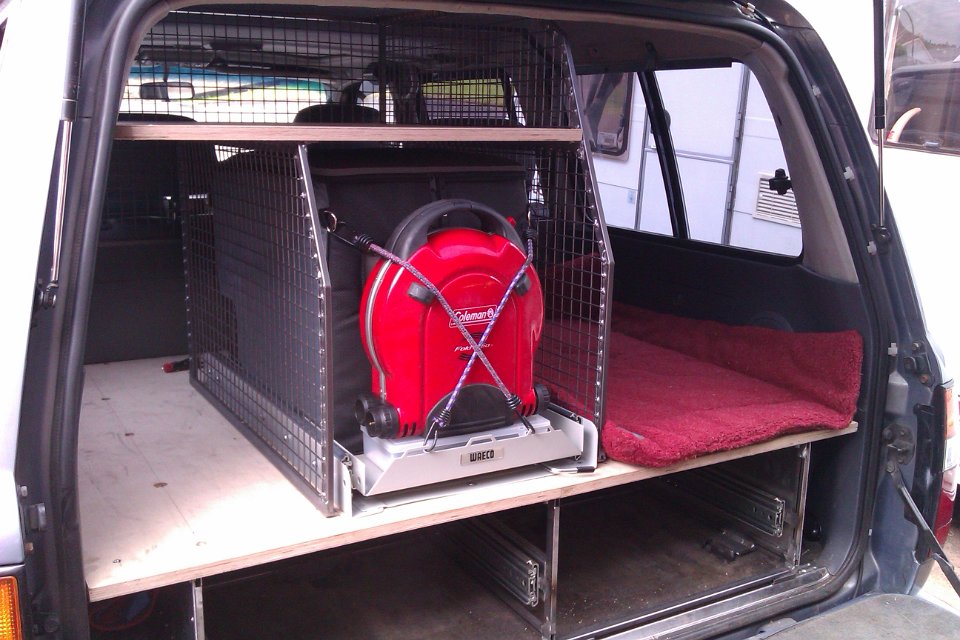

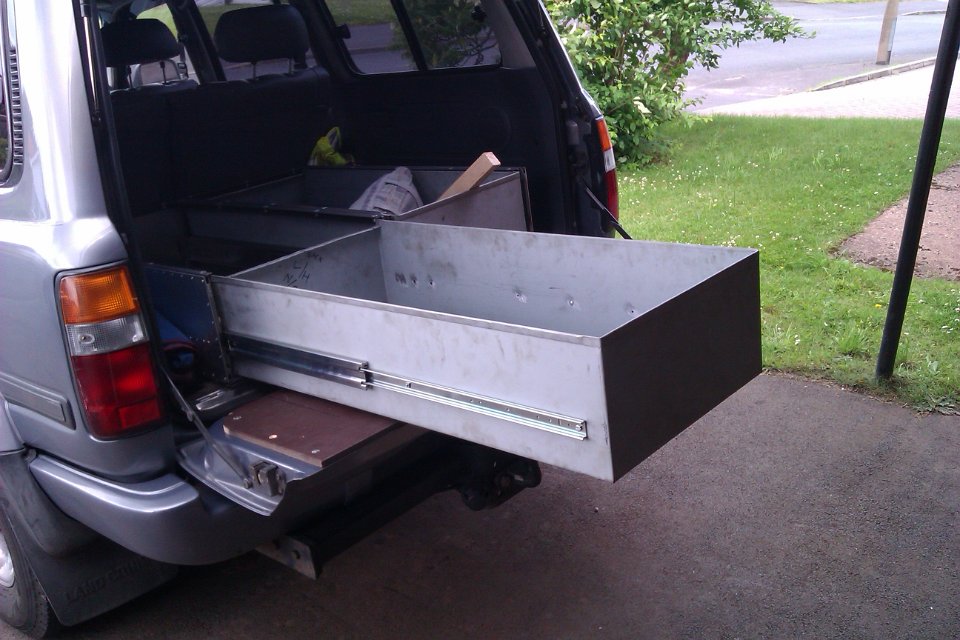

IMAG0966 IMAG0979  fridge etc IMAG0983 IMAG1004  Drawers are galvanised steel sheet folded into a box

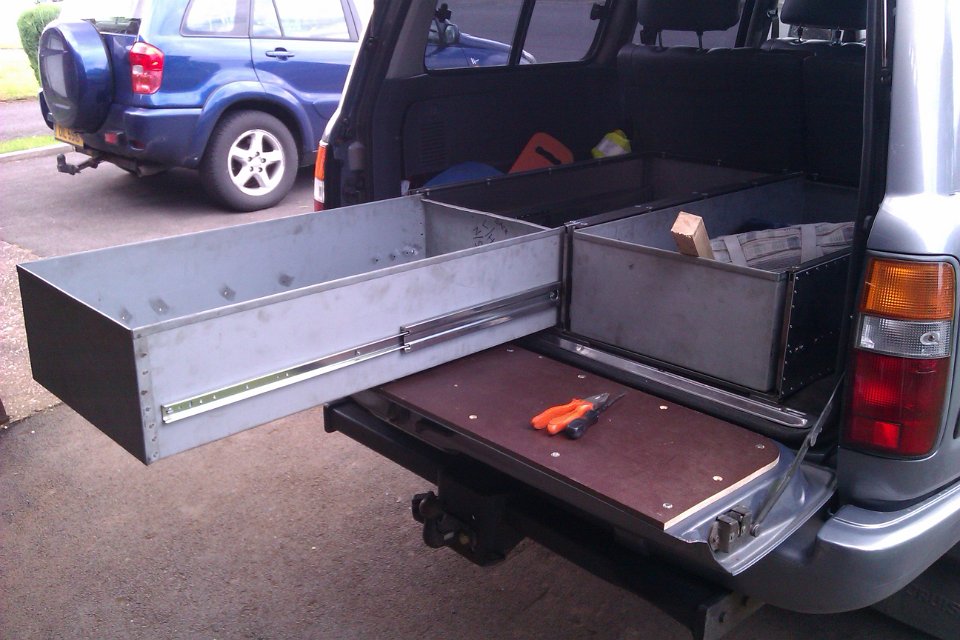

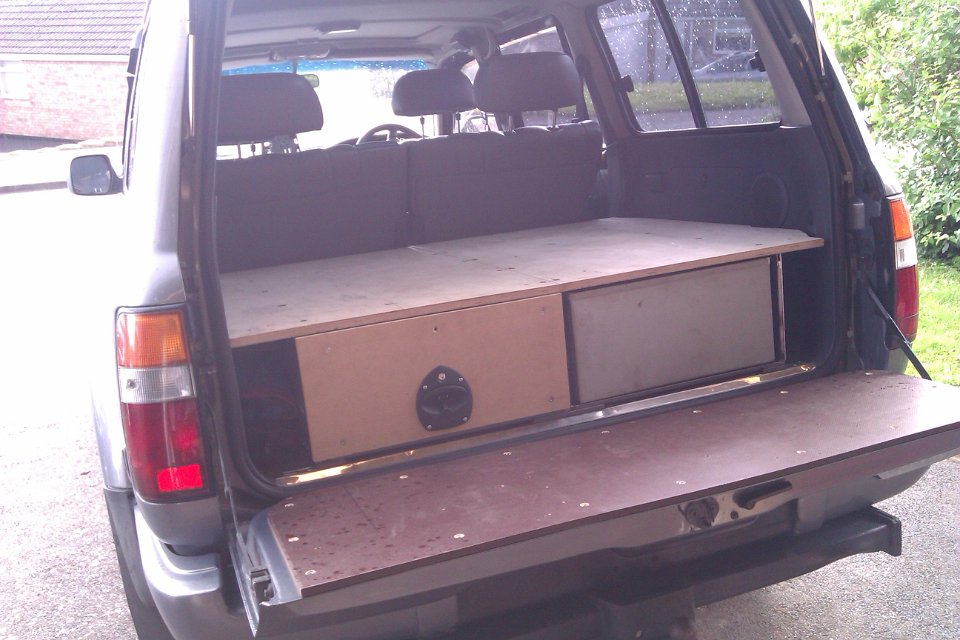

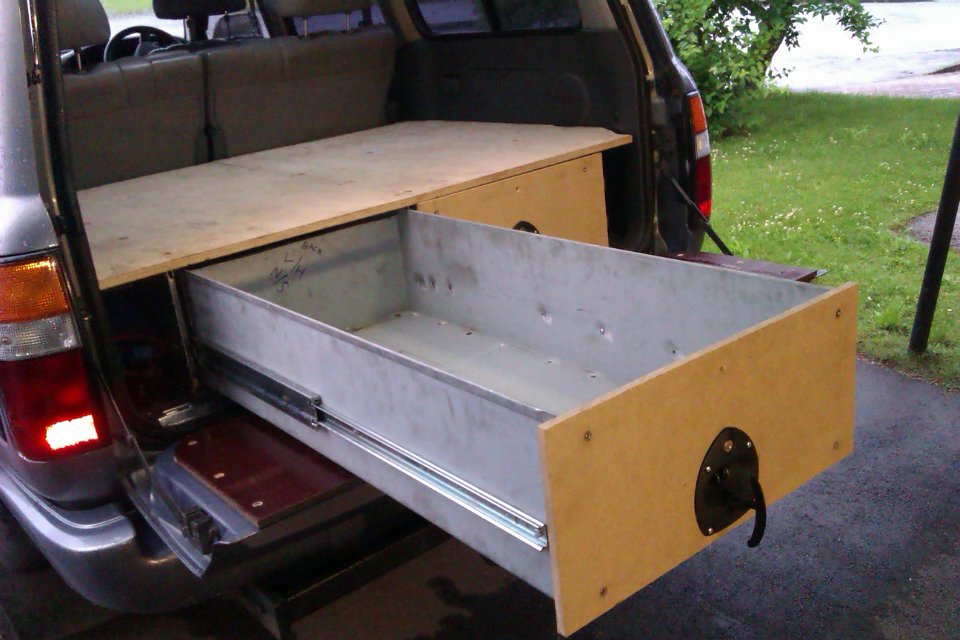

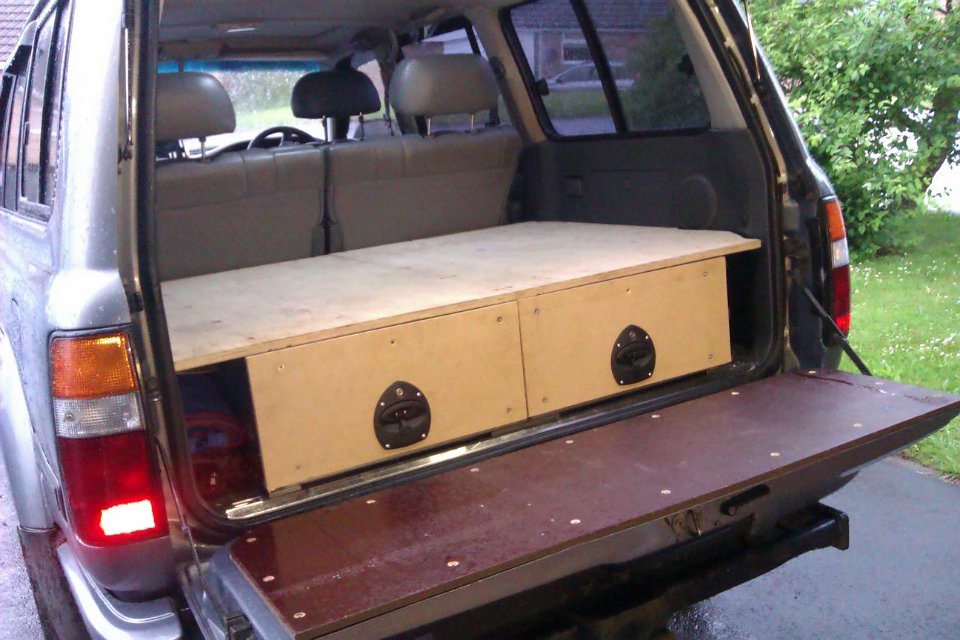

IMAG1006  Maximises drawer space by using folded sheet IMAG1009  MDF fronts for now, long term will need some nice ply wood or plastic IMAG1010 IMAG1011

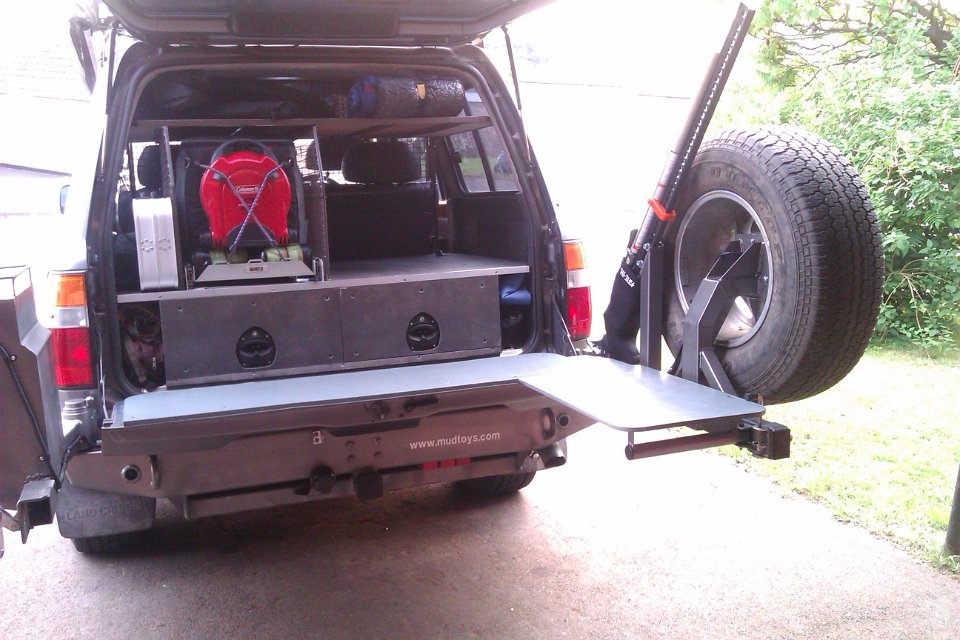

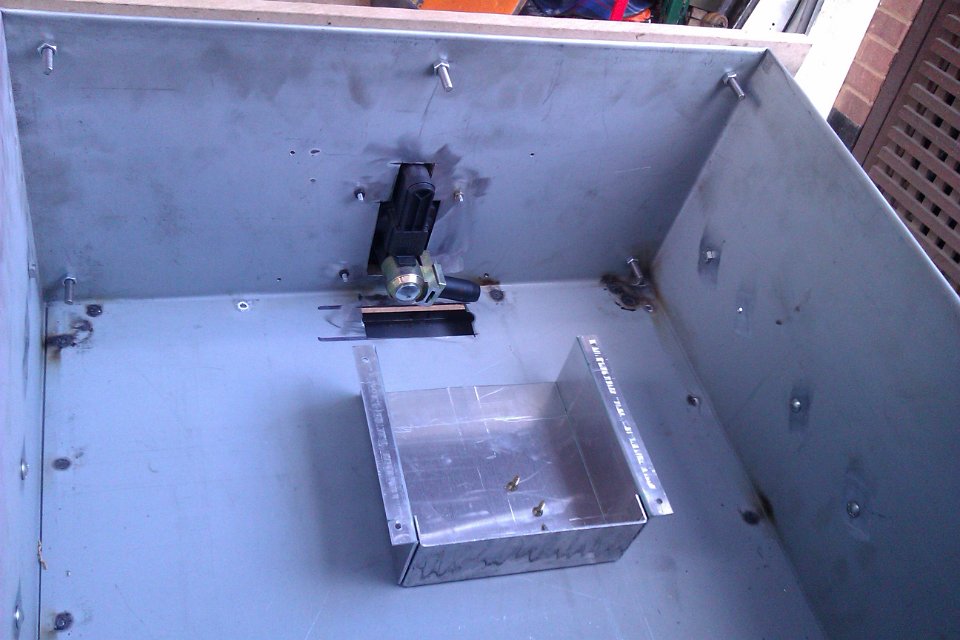

IMAG1012 IMAG1013 IMAG2155  Camping mode, dividers come out when not needed
